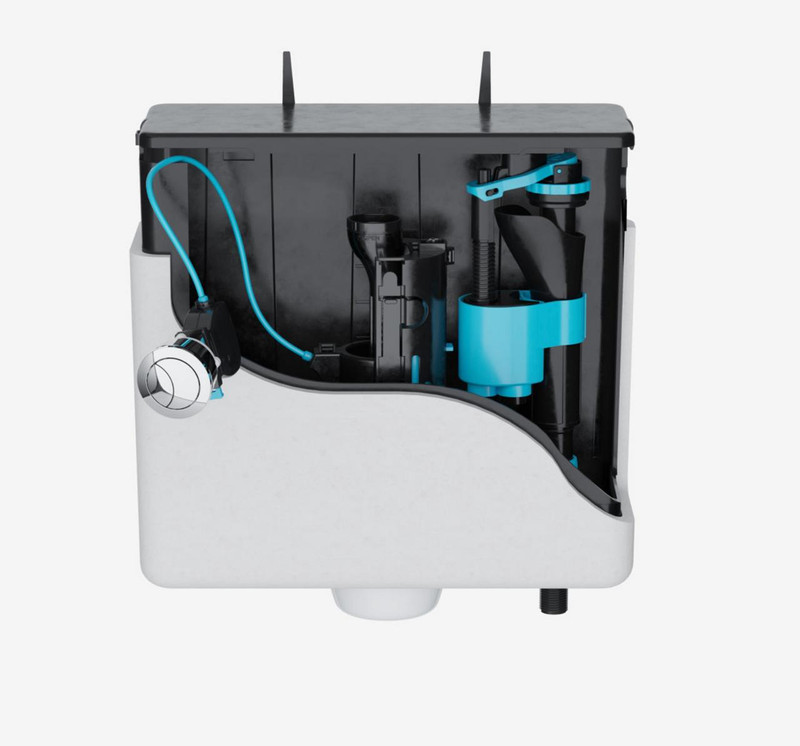

Viva Skylo Air Gap Universal Slimline Concealed Cistern — SKYCC02
The Viva SKYCC02 is a high-quality, universal slimline concealed insulated cistern designed to provide a reliable and space-saving solution for modern toilet installations. Featuring the innovative Skylo Air bottom-entry float valve with a delayed-action air gap, this kit prevents backflow contamination while promoting water efficiency. The ultra-compact, insulated body prevents external condensation and sweating, ensuring the longevity of your surrounding cabinetry or stud walls.
Identification Guide:
MPN: SKYCC02 | SKU: FTB5265 | Dimensions: 320mm (H) x 350mm (W) x 140mm (D) | Entry Point: Bottom Entry
Key Features
- Dual Flush Valve: Features an easy twist-and-remove dual flush mechanism with a 570mm cable and adjustable water volumes.
- Air Gap Technology: Complete with a delayed action, bottom-entry float valve that ensures strict compliance with fluid category safety standards.
- Insulated Slim Body: Compact design easily fits tight furniture voids while the protective lining stops condensation buildup.
- Fully Loaded Kit: Supplied with an easy-install mounting bracket, blanking plugs, flush pipe, fittings, and an secure pan seal.
Installation Note
This unit is specifically designed for bottom entry plumbing configurations. Please check your existing pipe layout before installing. To maintain the 10-year manufacturer warranty, ensure all included components, including the custom flush cone and pan seal, are fitted correctly onto your back-to-wall or concealed toilet frame.
