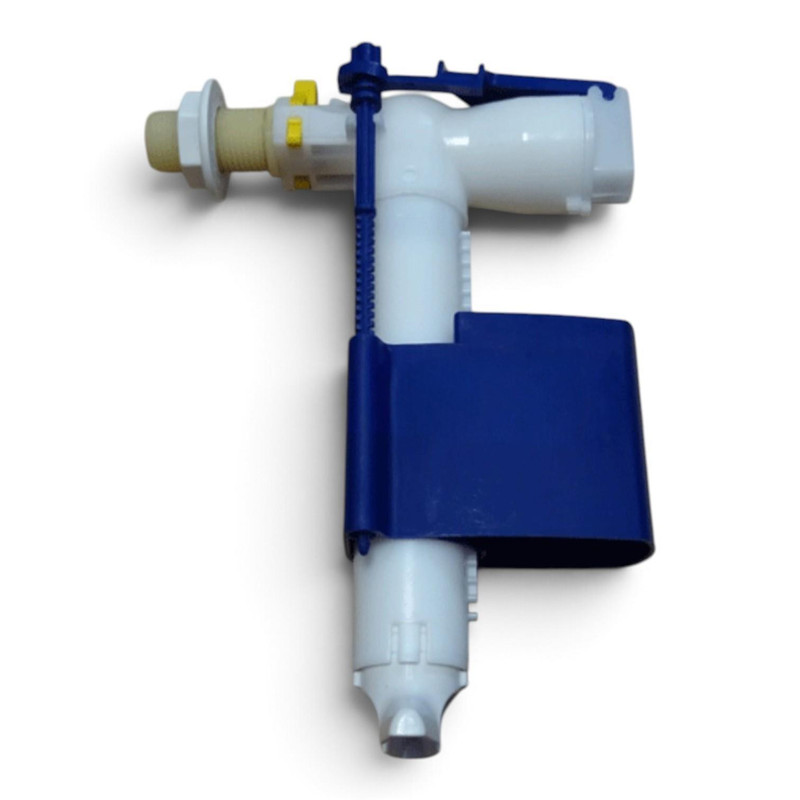

Multikwik Standard Side Entry Cistern Inlet Fill Valve — 1/2" BSP
The Multikwik Standard 1/2" Side Entry Inlet Valve is an authentic replacement cistern float fill valve manufactured by Multikwik (Aliaxis Group). Engineered for toilet cisterns supplied horizontally through the side wall of the tank, this valve features a standard UK 1/2" BSP male thread connection. It provides a direct, reliable solution for replacing noisy, worn, slow-filling, or passing side-entry ball valves in domestic and commercial toilet cisterns.
Identification & Sizing Guide:
Brand: Multikwik (Aliaxis Group) | Inlet Orientation: Side Entry (Horizontal mounting through cistern side wall) | Thread Size: 1/2" BSP Male (approx. 20.5mm–20.9mm outer thread diameter — standard UK domestic tap connector size) | Application: Side-fed close-coupled, low-level, and ceramic or plastic toilet cisterns.
Key Features
- Standard UK 1/2" BSP Connection: Fits directly to standard UK 1/2" flexible tap connectors, swivel nuts, and isolating valves without adapters.
- Universal Side Mounting: Reversible installation suitable for left-hand or right-hand side cistern entry apertures.
- Dual Pressure Operation: Operates efficiently across low-pressure gravity systems and high-pressure domestic mains supplies.
- Direct Replacement: Cures constantly running cisterns, continuous overflow drips, and delayed tank refilling.
- Complete Mounting Kit: Includes rubber cistern sealing washer and threaded locking backnut for a watertight seal.
Installation & Measurement Advice
Check Thread Size Before Ordering: This valve features a standard UK 1/2" BSP thread (measures approximately 20.5mm to 20.9mm outside diameter across the threads). It will not fit European 3/8" BSP connections (approx. 16.6mm OD) commonly found on continental concealed frames. Fit through the side hole of the cistern with the rubber washer inside the tank and secure firmly with the external backnut. Do not overtighten against ceramic walls.
