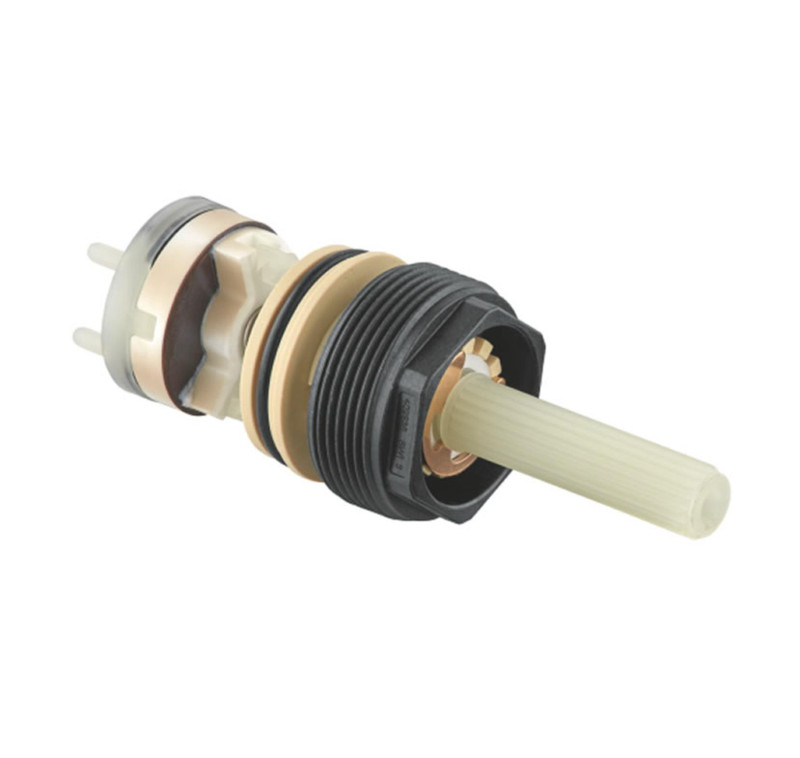

Grohe Aquadimmer Diverter & Flow Valve — 49084000
The Grohe 49084000 is an authentic, factory-original Aquadimmer flow control and diverter valve assembly designed for modern Grohe exposed thermostatic bath and shower mixers. Positioned on the water volume handle side, the Aquadimmer is a dual-function mechanism that regulates water on/off volume and seamlessly switches the water flow between two outlets (such as between the bath spout and hand shower, or overhead shower and handset). If your shower is dripping from the outlet when switched off, passing water to both outlets at the same time, or stiff to rotate, replacing this internal valve restores full control.
Identification Guide:
MPN: 49084000 (also referenced as 49 084 000) | EAN / Barcode: 4005176466182 | Function: Flow Volume Regulation & 2-Way Diverter Valve | Material: Engineered Polymer & Brass Spindle | Includes: Pre-fitted sealing O-rings and stop ring
Key Features
- Dual Flow & Diverter Control: Handles both water volume control and 2-way outlet switching within a single cartridge body.
- Cures Common Valve Faults: Resolves constant dripping from shower heads/bath fillers, cross-bleeding between outlets, and seized control knobs.
- Successor Part: Direct Grohe factory update/replacement for earlier Aquadimmer part 47364000 on compatible mixer models.
- 100% Genuine OEM: Ensures factory-milled tolerances, smooth handle indexing, and dependable watertight seals.
Installation Note
Always isolate incoming hot and cold supplies before dismantling the mixer. Remove the flow/diverter control handle, trim cap, and stop ring to access the valve body. Unscrew the retaining headwork using the correct sized spanner/socket. Clean any limescale build-up inside the brass chamber, lightly coat the replacement O-rings with WRAS-approved silicone grease, and align the locating lugs into the valve housing before tightening. Do not overtighten during installation.
Confirmed Model Compatibility
Engineered for modern Grohe exposed thermostatic bath/shower and dual-outlet shower mixer models, including:
- Grohtherm 800: 34567000 (Exposed Bath/Shower Mixer 1/2"), 34569000
- Grohtherm 1000 Cosmopolitan: 34215002, 34065002, 34286002 (Bath/Shower & dual-outlet mixers)
- Grohtherm 1000 Performance: 34779000 (Exposed Bath/Shower Mixer)
- Euphoria & Tempesta Systems: Select exposed thermostatic shower systems with integrated bath filler or dual shower outlets specifying part 49084000.
- Please note: This is the flow/diverter unit fitted to the on/off side of the mixer. It is not the thermostatic temperature cartridge (which is on the opposite side).
