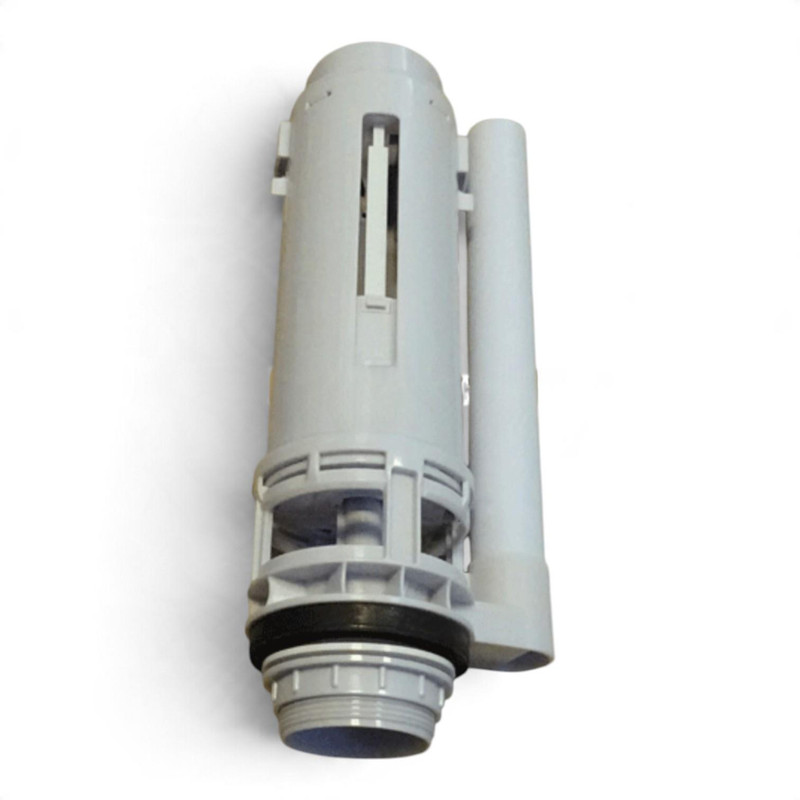

FixTheBog A2423 Dual Flush Valve with Basket — A2423
The FixTheBog A2423 is an authentic replacement dual-flush valve mechanism supplied complete with a matching 2" (50mm) base cradle basket. Designed for close-coupled and concealed toilet cistern installations, it replaces leaking, passing, or worn-out flush mechanisms. Engineered with direct mechanical push-button actuation, it eliminates cable stretching and pneumatic air tube leaks, providing dependable water-saving dual flush control and an immediate, positive base seal to prevent trickling into the pan.
Identification Guide:
Brand: FixTheBog | MPN: A2423 | Product Type: Dual Flush Valve with Cradle | Outlet Size: Standard 2" (50mm) Cistern Base Hole | Actuation: Direct Mechanical Push-Button
Key Features
- Supplied Complete with Basket: Includes the threaded 2" base cradle, sealing washer, and retaining nut for a full replacement or new installation.
- Quarter-Turn Bayonet Release: The upper valve body twists out of the cradle in seconds, allowing effortless maintenance or washer replacement without dismantling the cistern.
- Water-Saving Dual Flush: Built-in volume adjusters for full flush and eco partial flush operation.
- Cable-Free Mechanical Action: Operates directly via push-button linkage, removing common failure points like snapped cables or split pneumatic bellows.
- Resilient Base Seal: Fitted with a high-grade silicone sealing washer that resists limescale accumulation and chlorine attack.
Installation & Fitment Guide
This valve is fitted with a standard 2" (approx. 50mm internal / 60mm thread diameter) base outlet. If replacing an existing valve that uses an identical bayonet cradle, the upper valve can simply twist into place without removing the cistern. For full cradle replacement on a close-coupled toilet, the cistern must be detached from the pan to fit the base basket and donut washer. Designed for mechanical push-buttons; not compatible with pneumatic air-hose flush systems.
