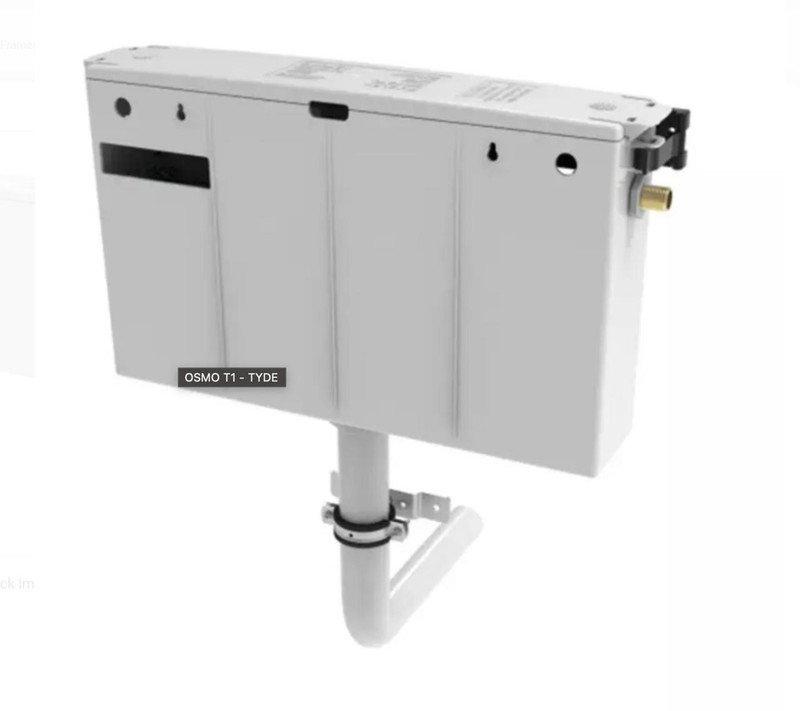

Dudley OSMO T1 Centre Outlet Side Inlet Tyde

PRODUCT FEATURES

• Axis 225 mm
• Depth 110 mm
• Height 315 mm
• Width 550 mm
• Side Inlet

DETAILS

Dudley OSMO T1 Cistern (White) 2' Centre Outlet Side Inlet C/W DF Niagara Pneumatic Valve Pushfit Adaptor, Hydroflo Side Inlet Compact Flow Regulated Brass or Plastic Tail, QR Brackets Kit, Partitions Pack. Assembled. 6/4L, 5/3L, 4/2.6L (Dwg 14824),

WRAS Approved cistern assembly

WRAS Approved Dudley Niagara pneumatic flush valve

WRAS Approved Dudley Victoria cable flush valve

WRAS Approved Dudley Hydroflo 7s Delay Fill Brass Tail Inlet Valve (Side or Bottom Inlet)

Easy top access with reversible SnapLock lid™

Factory Assembled Pneumatic push button / plate can be installed up to 250mm away from cistern Unique reversible cistern body due to AXIS Technology™ achieving multiple outlet and inlet options Flush Pipe Stability System (FPSS™) with SureLock™

Bracket Multiple Flushing Volumes: 6/4 – 5/3 – 4/2.6 ltr (Alternative volumes upon request) Fluid category 5 cistern; the only way to achieve a water regulations compliant cistern in standard height pod shelves

FTB12851
