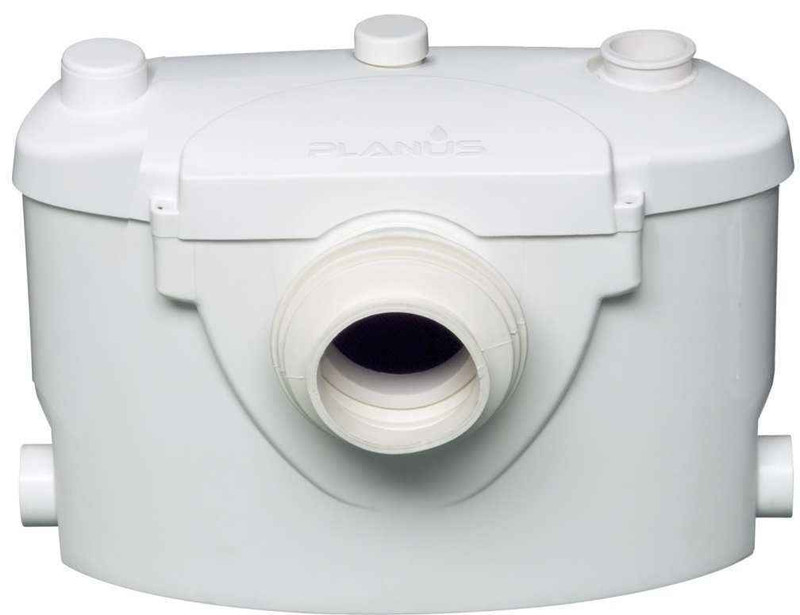

Broysan Self Contained Waste Water Macerator Pumping Unit For Showers Toilets Washing Machines Baths Operating Below The Nearest Sewer

PRODUCT FEATURES

BROYSAN MACERATOR

Broysan allows you to realize an additional bathroom, kitchen, laundry room even far from the soil stack without needing any major construction Broysan is a box containing a powerful and silent macerator which allows to discharge waste water through a small diameter pipe (30 or 40mm) to the nearest soil stack

Broysan can be connected to a toilet with horizontal trap. Through the additional side connections it's also possible to connect any other bathroom's devices and the waste water from any other device.

Power 400 W

Power supply 220-240V 50Hz

Maximum Discharge distance 100m

Maximum Discharge height 8m

Discharge pipe Diameter 23/28/32mm

Dimensions 420mm x 300mm high x 180mm Deep

Input Voltage AC 220-240V, 50Hz

Input Power 400W

Degree of protection IPX4

Max. Input flow 14.5 l/min

Horizontal discharge 100m

Discharge head 8m

Discharge hose 23/28/32mm
