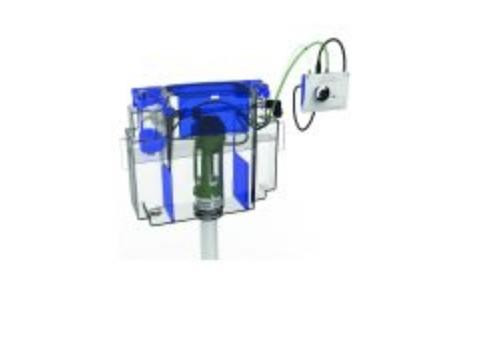

(322898) Dudley Vantage Electroflo Concealed Cistern

PRODUCT FEATURES

• Innovative electronic WC flushing system designed for use with Dudley Vantage and Miniflo concealed cisterns and Illusion A and V frames.
• Ideal for use in bathroom furniture, behind tiles and partitioning and in most other domestic and commercial applications.
• The Electroflo can also be simply retrofitted to upgrade existing pushbutton or push plate operated Vantage cisterns.

DETAILS

This Dudley "Vantage" Electroflo Concealed Cistern 6/4 L Niagara Dualflush Pneumatic Valve comes with a Dualflush Infrared Sensor with a 100mm CP Surround it provides water saving Dual Flush when a hand is held in front or waved across the sensor. This provides a hygienic touch-free solution.

This Concealed Cistern is Battery Operated by four 1.5V AA batteries (not included), however it can be converted to a Mains Operated Cistern by adding product code: 323107 - Mains Adaptor. Discreet sensor provides water saving dualflush when a hand is held in front or waved across the sensor. This provides a hygienic touch-free solution.

Sensor is also interactive and indicates when full or reduced flushes are being delivered and when the cistern is refilling.

Sensor surround measures just 100mm in diameter and comes in an attractive chrome plated. A 40mm diameter commercial sensor surround with operating instructions is also available, see product code: 322899 Compact control box fits neatly onto the rear panel into which the sensor is installed. Powered by four 1.5V AA batteries (not includes) or mains via a 240V transformer (323107) 400mm long sensor cable plugs into the control box via a user-friendly adaptor. Spares are readily available. Water-saving 6/4, 5/3 or 4/2.6 litre dualflush.

Supports Code for Sustainable Homes and BREEAM. Options Battery or mains powered. 40mm or 100mm diameter sensor surrounds. Extension kit for use with walls up to 170mm thick.

FTB6206
