MOTORISED Diverter Priority VALVE ACTUATOR 3 PORT 1/2 BSP Female CAN REPLACE V4043C

PRODUCT FEATURES

3 port spring return diverter valves

Port A is normally closed when there is no power Application

The range 3-port spring return diverter valve is for flow of water in a domestic heating system where both radiator and hot water cylinder circulation are pumped

Manual lever for filling/draining down

Powerhead replaceable without draining down

Motor changeable without replacing whole powerhead

Quiet operation, minimal power consumption

Includes 1m cable in standard colours

Technical Data

Voltage: 230Vac / 110Vac / 24Vac

Power consumption: 6W

Cable length: 1 metre, 5 core

Fluid temperature: +5 to +88°C

Max ambient temperature: +52°C

Certifications

CE : CI02410

ISO 9001:2000

GB00568

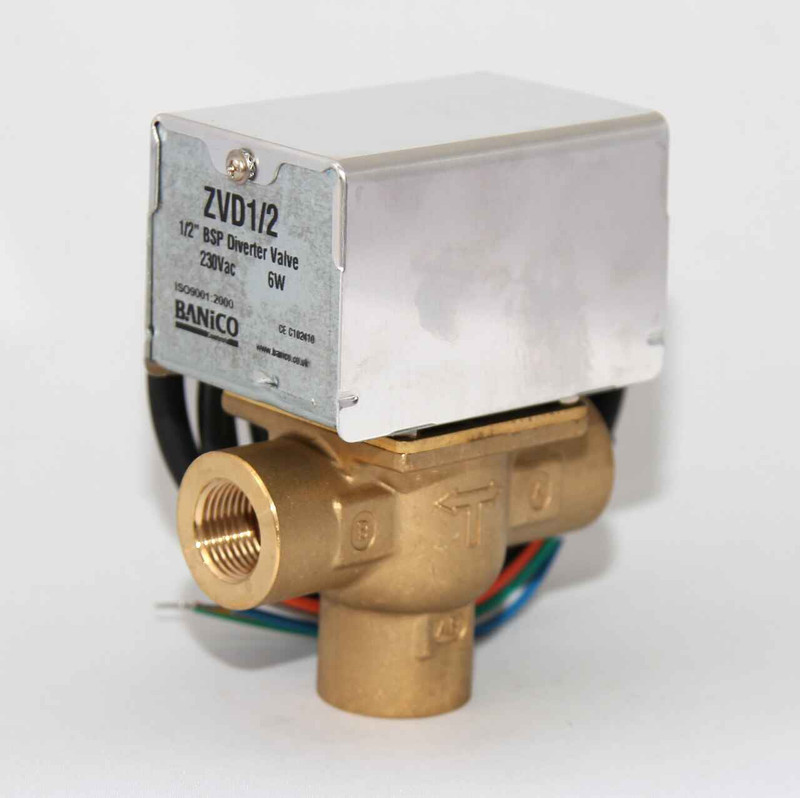

Photo for illustrative purposed only
