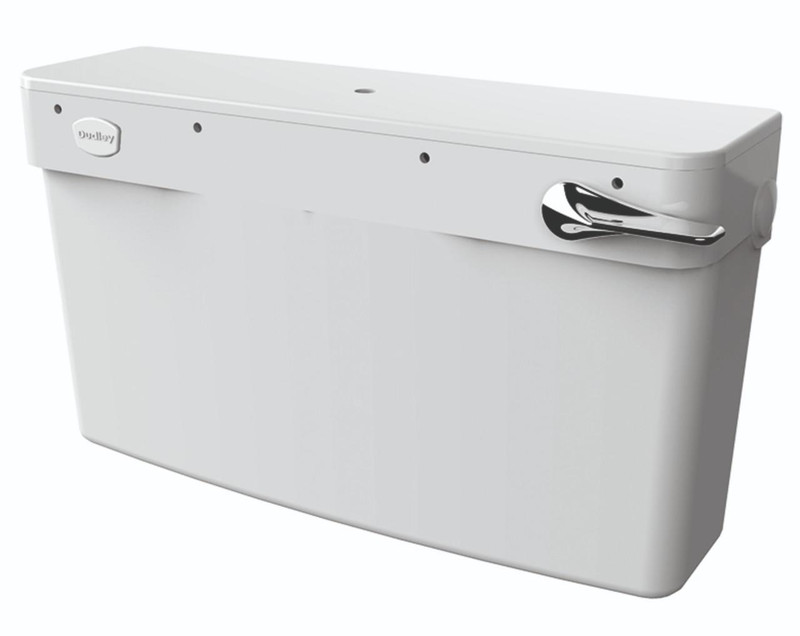

Upgrade your concealed toilet system with the Dudley Mirage Low Lever Cistern 314978, featuring a side connection ball valve with float and the innovative Turbo 88 Dual Flush Syphon. Designed for modern washrooms, this cistern offers both functionality and water-saving features.
Key Features:
-
Concealed Design: Ideal for installation behind tiles and partitions, ensuring a sleek and modern appearance in your bathroom.
-
Vandal-Resistant Lever: Equipped with levers featuring vandal-resistant stops to prevent backward rotation, enhancing durability and reliability.
-
WRAS Approved Components: Includes the Dudley Turbo 88 Syphon and Part 3 Inlet Valve, both WRAS approved, ensuring compliance with water regulations.
-
Top Access: Designed with top access for easy maintenance and servicing, simplifying upkeep.
-
Water-Saving Dual Flush: Features the Dudley Duoflush system, delivering a reduced flush when the lever is held down and a full flush when released, promoting water conservation.
Specifications:
-
Dimensions: Width: 505mm, Height: 285mm, Depth: 146mm.
-
Capacity: Convertible between 6, 7, or 9 litres to suit your flushing needs.
-
Material: Cistern body constructed from high-density polystyrene for strength and durability.
-
Overflow: Includes internal and external overflow warnings for added safety.
Installation Instructions:
For detailed installation guidance, please refer to the official Dudley Mirage installation manual.
Additional Information:
The Dudley Turbo 88 Syphon incorporates a patented Duoflush facility, delivering a water-saving reduced flush when the lever is held down and a full flush when released.
